    4wd bluetooth controlled car with arduino with extended range up to 1000 meters

    In this topic i will show how you can extent the control range of the 4wd bluetooth car setup which i described here: http://coding-talk.com/forum/arduino...r-with-arduino

    required parts:Step 1:
    assemble the car chassis, solder the wires to the motors, you should be able to figure out on your own how to assemble it.

    Step 2:
    connect motorshield to your arduino mega

    Step 3:
    Create receiver and transmitter module,
    First lets create a signal receiver and transmitter.
    NRF Modules require 3.3 Volt power supply, so make sure its connected to 3.3 Volt

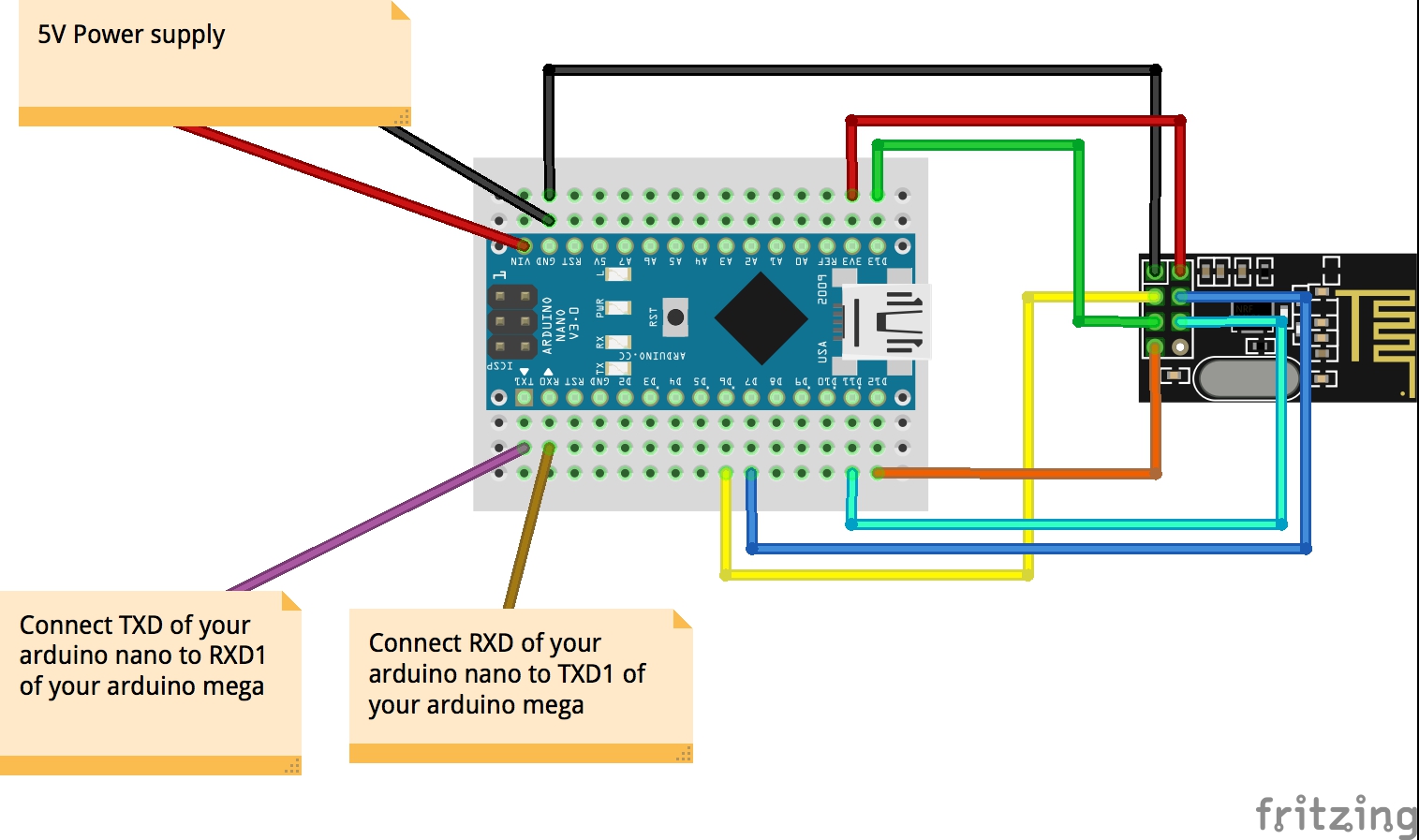

    Receiver connections should look like this: Click image for larger version

Name:	receiver sketch nrf_Steckplatine.jpg
Views:	231
Size:	376.8 KB
ID:	153464




    Transmitter setup: Click image for larger version

Name:	transmitter sketch nrf_Steckplatine.jpg
Views:	168
Size:	459.6 KB
ID:	153465




    Step 4:
    upload the attached receiver and transmitter sketches to your arduino nano boards, this sketches require the https://github.com/TMRh20/RF24 library.
    To avoid sketch upload errors disconnect the wires from rx and tx ports of your arduino nano boards and after the sketches were uploaded, connect the wires back.

    Step 5:
    Connect the transmitter arduino board to your power bank.
    The hc-06 bluetooth module should start blinking, pair your mobile phone to it, the default password is 1234
    Connect the batteries to motor shield.


    Step 6:
    Open the Arduino Bluetooth RC Car App connect it to hc-06 and test the car.
    (Might be you will need to swap the motor wires polarity on the motorshield, so that motors rotate in correct direction.)

    When everything is connected correctly she car should work the same way as described here: http://coding-talk.com/forum/arduino...r-with-arduino just with an extended range.

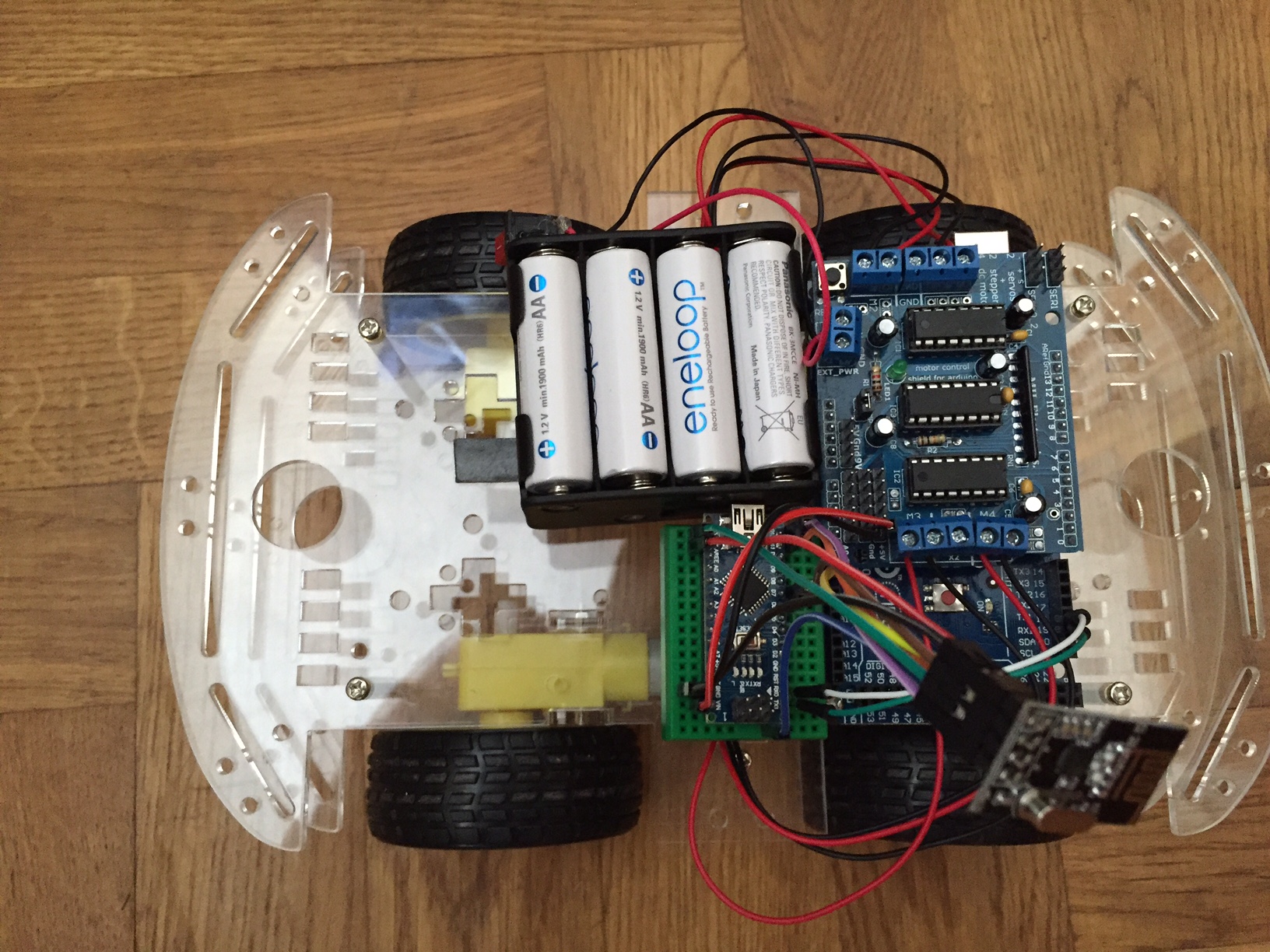

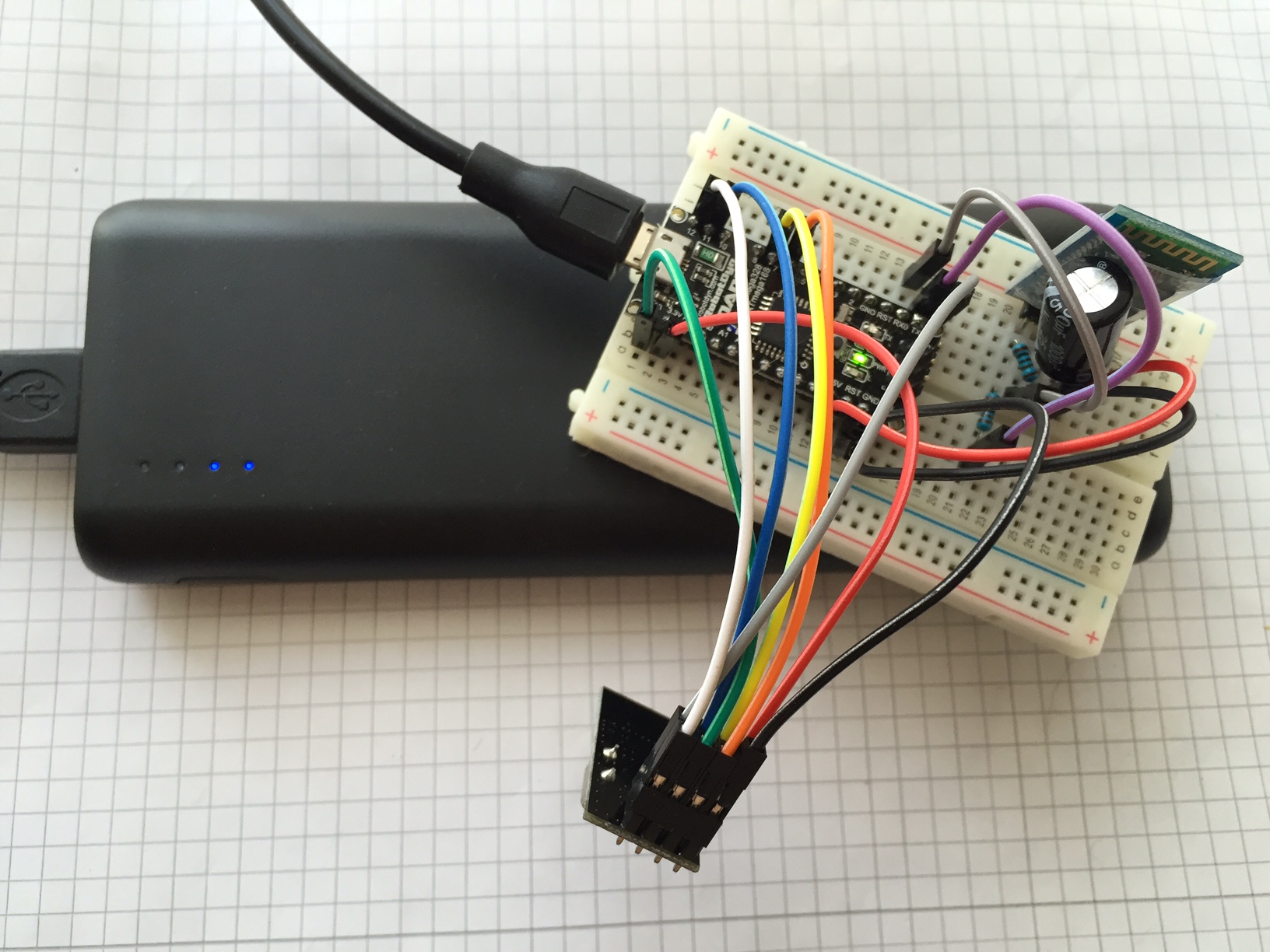

    Here are some photos of my setup:
    Click image for larger version

Name:	IMG_9079.JPG
Views:	216
Size:	447.0 KB
ID:	153468
    Click image for larger version

Name:	IMG_9080.JPG
Views:	196
Size:	662.9 KB
ID:	153469
